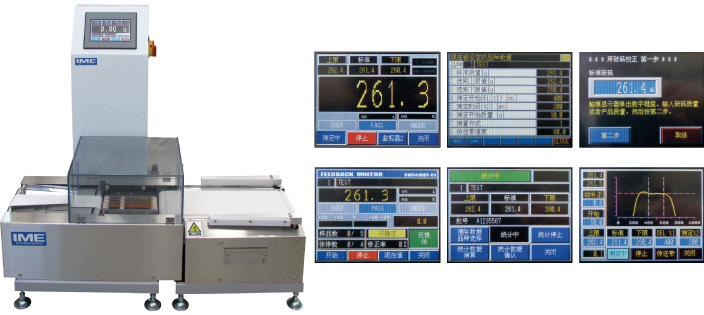

One lane conveyor type 0.01g

Quality

  • The 2000 times per second sampling measured by the 32-bit microcomputer.
    It is available to measure with high precision.
  • High operability by 7 inches color LCD touchscreen.
  • You can select languages in English, Japanese and Chinese.
  • It drawings accurate measurement waveform.
    You can set the optimal timing of measurement for the product.
  • It is available to calibrate simply with high precision by interactive operations displayed on the touch screen.
    Further, you can calibrate it by our inspection process documents.
    You will be able to reduce the maintenance costs.

One lane conveyor type 0.01g

One lane conveyor type 0.01g

One lane conveyor type 0.01g

▲PAGE TOP

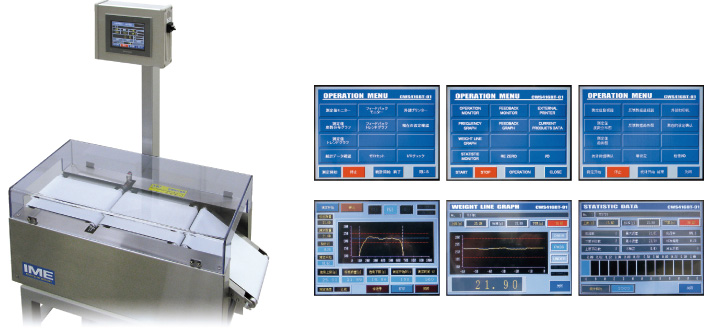

One lane conveyor type 0.1g / 1g

Quality

  • We design and manufacture the check weigher to suit you with the product's dimension, production line and required precision.
  • In case of measuring heavy products (ex.1kg) wh high precision, It is also available to measure statically with a weighing conveyor paused. (within ±0.2g)
  • Our technology makes good use of measuring such as food and industrial products.

▲PAGE TOP

One lane conveyor type CWS416BT  Specifications

ModelBT01-FX150BT01-FX1000BT01-GPX10000
Number of lanes 1 Lane 1 Lane 1 Lane
Capacity 1 〜 150 g 10 〜 900 g 100 〜 9000 g
Maximum Speed 100 rpm 100 rpm 50 rpm
Maximum precision(3δ) ± 0.03 g ± 0.5 g ± 5 g
Readability 0.01 g 0.1 g 1 g
Product size Unrestricted
Ejection Special design by product's dimensiont
Power source AC100・115・200・220・230・240±10％　Single phase 50/60Hz
Power consumption Less than 200W (Maximum 1500W during printing)
Weight Less than 150kg
Environment

0〜40℃(Not to exceed 3℃/h to maintain precision), relative humidity 30% to 85%, no dew condensation
Control box Painted/Stainless steel/Plastic
Degrees of protection IP 30
Options Waterproof(IP65), Printer, Feedback system, Data collection system, Various validation support
